Overview

• This note connects perceptron basics to modern training workflows in neural networks.
• Focus areas: gradient descent, backpropagation, activation functions, and loss functions.

Neural Networks & Perceptron Basics

Core Idea

• Compute a weighted sum of inputs plus a bias.

• Apply an activation or decision rule to map $z$ to an output.

• The perceptron is a linear classifier, so it learns a hyperplane.

Key Components

• Inputs: numeric features (often standardised).
• Weights: learned coefficients that control feature influence.
• Bias: shifts the decision boundary.
• Output: class label (perceptron) or activation value (network).

Decision Boundary Intuition

• A single perceptron can only separate linearly separable data.
• Nonlinear problems require multiple layers or feature engineering.

Practical Notes

Foundations

• Forms the intuition for multilayer networks.
• Introduces learned weights, bias terms, and linear separability.
• The perceptron learning rule updates weights on mistakes, while modern networks use gradient-based updates.

Gradient Descent

Core Idea

• Iteratively update parameters to reduce the loss.
• Learning rate controls the step size.

Practical Notes

Optimization Dynamics

• Batch size affects stability and noise.
• Momentum or adaptive methods can speed up convergence.

Update Rule

• In general, the update rule is:

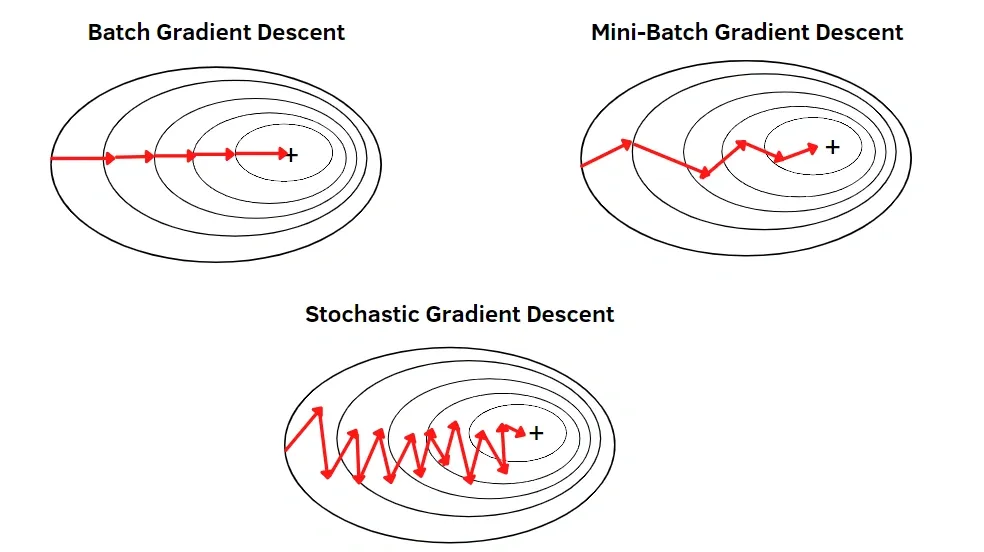

Types of Gradient Descent

Full-Batch Gradient Descent

• Uses the entire dataset to compute each gradient step.
• Stable convergence but high per-step cost on large datasets.

Stochastic Gradient Descent (SGD)

• Uses a single example per update.
• Noisy updates can help explore the loss surface.

Mini-Batch Gradient Descent

• Uses small batches (e.g., 32 to 512) per update.
• Common default due to efficient hardware utilisation and smoother gradients.

Linear Regression Form

Model

MSE loss

Gradients

Updates

Backpropagation

Core Idea

• Uses the chain rule to compute gradients layer by layer.
• Propagates Error backward from the output to earlier layers.

Practical Notes

Backpropagation

• Requires differentiable activation functions.
• Makes training deep networks computationally feasible.
• Cache intermediate activations to reuse during gradient computation.
• Gradients flow from loss to output layer, then to hidden layers, then to inputs.

Example Neural Network

• Consider a 2-2-1 network for binary prediction:
  • Input $x \in \mathbb{R}^2$
  • Hidden layer $h = \sigma(W_1 x + b_1)$ with $W_1 \in \mathbb{R}^{2 \times 2}$
  • Output $\hat{y} = \sigma(W_2 h + b_2)$ with $W_2 \in \mathbb{R}^{1 \times 2}$
• Use binary cross entropy: $L = -\big(y \log \hat{y} + (1-y)\log(1-\hat{y})\big)$

Backprop Flow (Key Gradients)

• Output layer Error: $\delta_2 = \hat{y} - y$
• Output weights: $\nabla_{W_2} L = \delta_2 h^\top$, bias: $\nabla_{b_2} L = \delta_2$
• Hidden Error: $\delta_1 = (W_2^\top \delta_2) \odot \sigma'(W_1 x + b_1)$
• Hidden weights: $\nabla_{W_1} L = \delta_1 x^\top$, bias: $\nabla_{b_1} L = \delta_1$

Activation Functions

Core Idea

• Introduce nonlinearity so networks can model complex patterns.
• Shape gradient flow during training.

Practical Notes

Activation Choice

• Choice affects convergence speed and stability.
• Modern defaults often start with ReLU-like activations.

ReLU

• $\max(0, x)$ keeps positive signals.
• Risk of dead neurons if inputs are consistently negative.

Sigmoid

• Outputs in $[0, 1]$, useful for probabilities.
• Saturation can slow learning due to small gradients.

Tanh

• Outputs in $[-1, 1]$, centred around zero.
• Often trains faster than sigmoid in hidden layers.

Loss Functions

Core Idea

• A loss measures prediction Error and drives gradient updates.
• Pick losses to match the output type and task.

Practical Notes

Loss Selection

• Scaling and label encoding affect loss behaviour.
• Monitor both loss curves and task metrics during training.

Regression

• Mean Squared Error (MSE) penalises large errors strongly.
• Mean Absolute Error (MAE) is more robust to outliers.

Classification

• Cross Entropy for multi-class problems.
• Binary Cross Entropy for two-class problems.
